SPPID_How to put instrumentation text and Tag sequence no.

Some drafters just simply type text into instrumentation symbol. It's not correct.
The first letter (Measured Variable Code) and Tag Sequence Number should type into loop, then it will shows on the instrumentation symbol. only the Instr. Type Modifer need to be typed into Instr. symbol.

1. Send loop to Drawing Stockpile.

2. Type the number into Loop Tag Seq No.

3. Click the instrumentation symbol.

4. click the loop Tag"...."

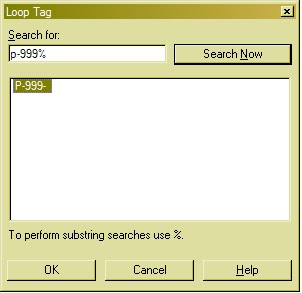

5. put P-999%, then click Search Now.

6. Now you can see the Tag Seq No shows on the instr. symbol automaticly.

7. Put second letter, for example "I" or "IC"or somthing else.

*Again: sometimes, You may need put plant number and train number on the loop, then it will shows as: 70-P-2999, 70 is the plant number, 2 is the train number.
